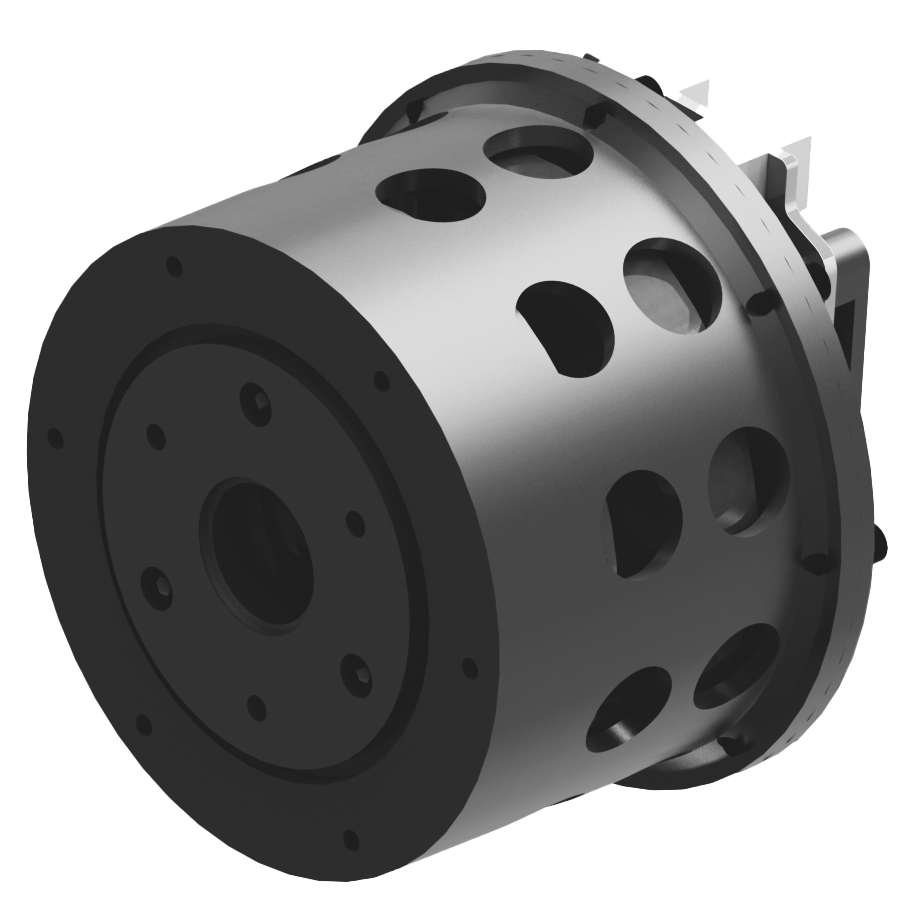

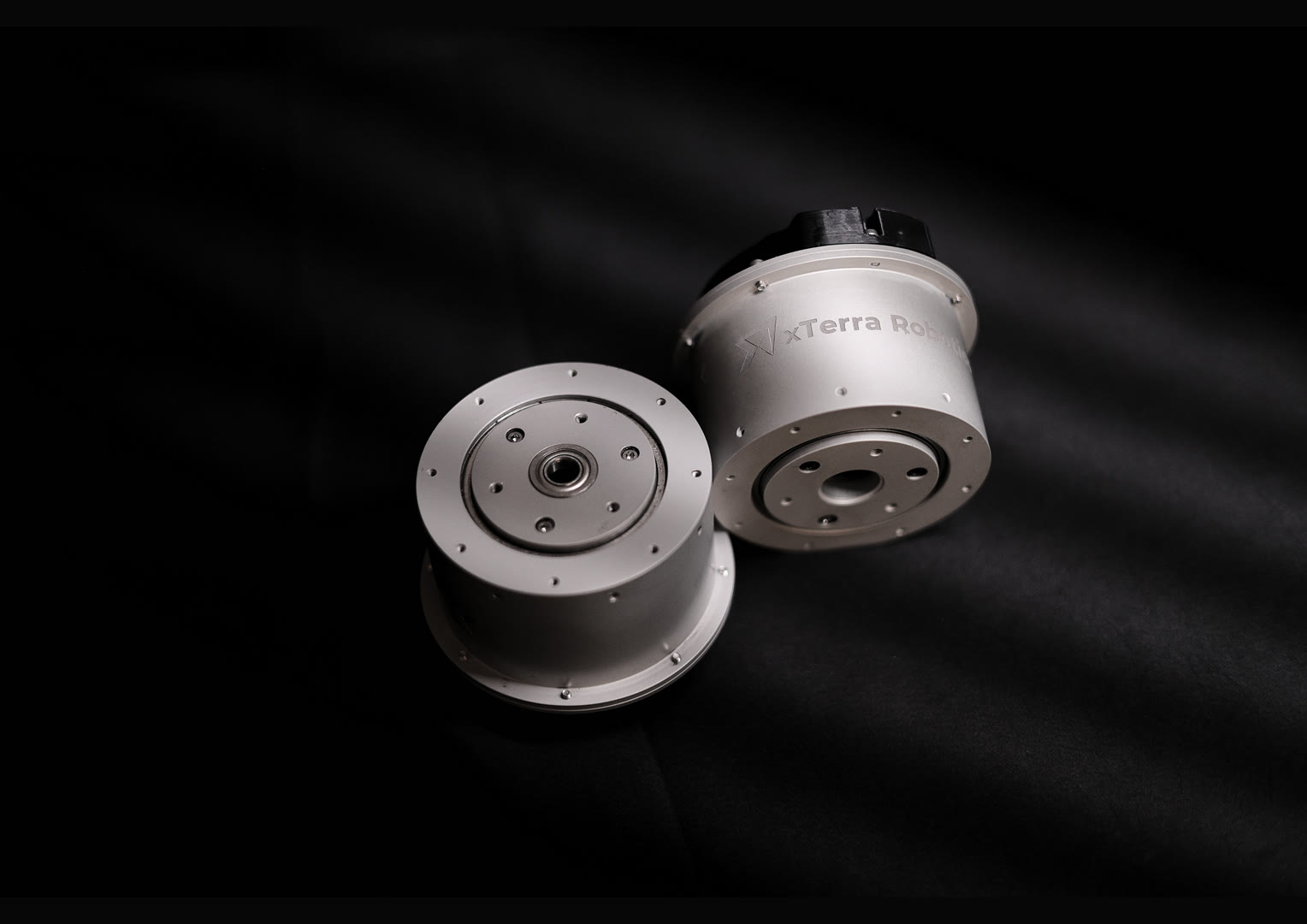

QDD A2
Next-Generation Quasi-Direct Drive Actuator
12 Nm Peak Torque | 550g | Exceptional Backdrivability
Key Features
12 Nm Peak Torque
22 Nm/kg Torque Density
Exceptional Backdrivability
FOC Motor Control
Specifications
Weight550 grams
Peak Torque12 Nm
Voltage Input10-24V DC
Peak Power500W
Control ModeFOC (Field-Oriented Control)
Control Rate15-30 kHz
Outer Diameter77 mm
Thickness50 mm
Encoder Resolution14-bit (16,384 counts/rev)
Encoder TypeAbsolute Magnetic
Power Connector2x XT-30
Data Connector2x JST PH-3
See QDD A2 in Action
Watch our high-performance actuator demonstrate its exceptional backdrivability and precise control
Applications
Powering the next generation of robotic systems

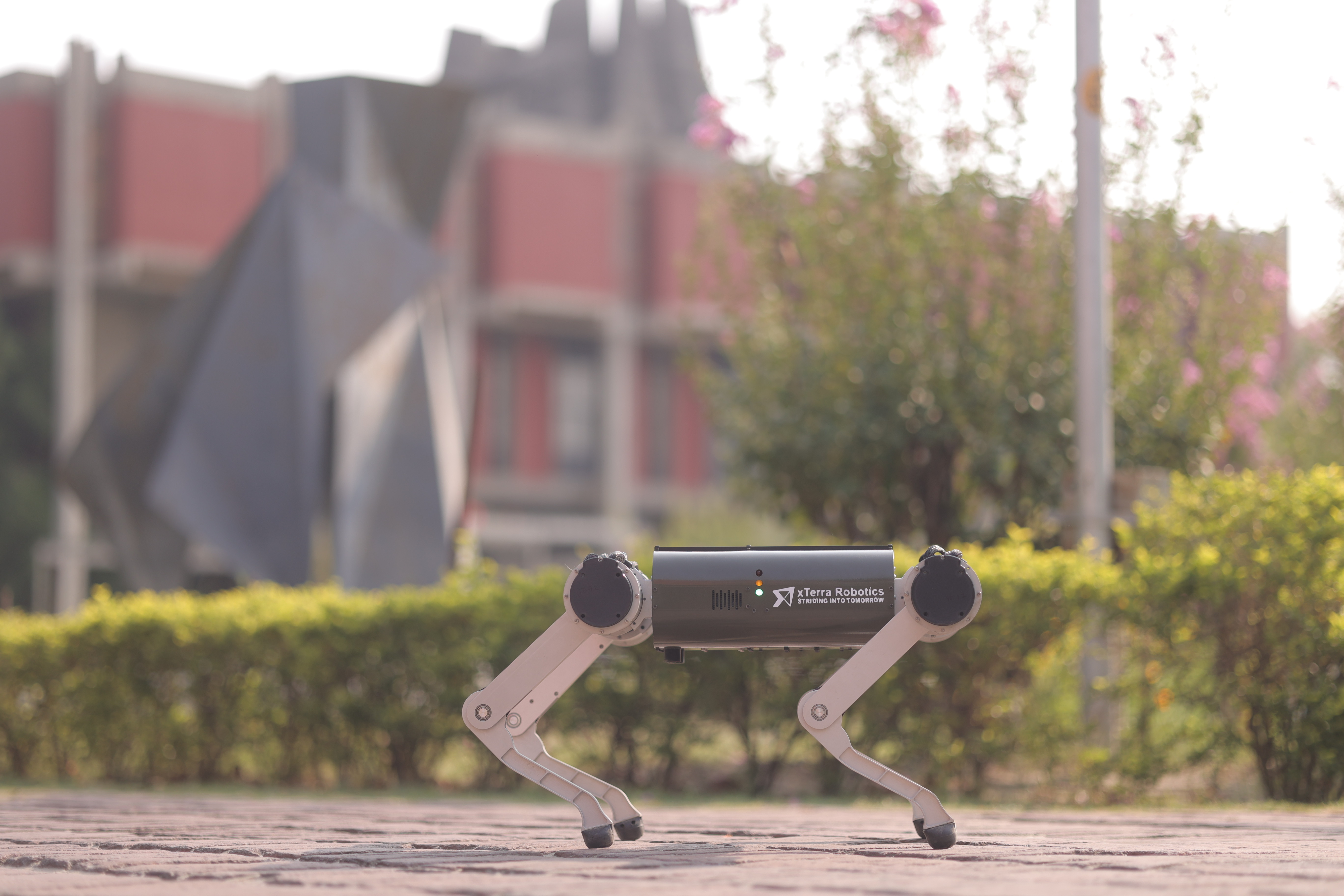

Quadruped Robots
High-performance locomotion for dynamic quadruped platforms
Robotic Arms
Precise manipulation with exceptional backdrivability

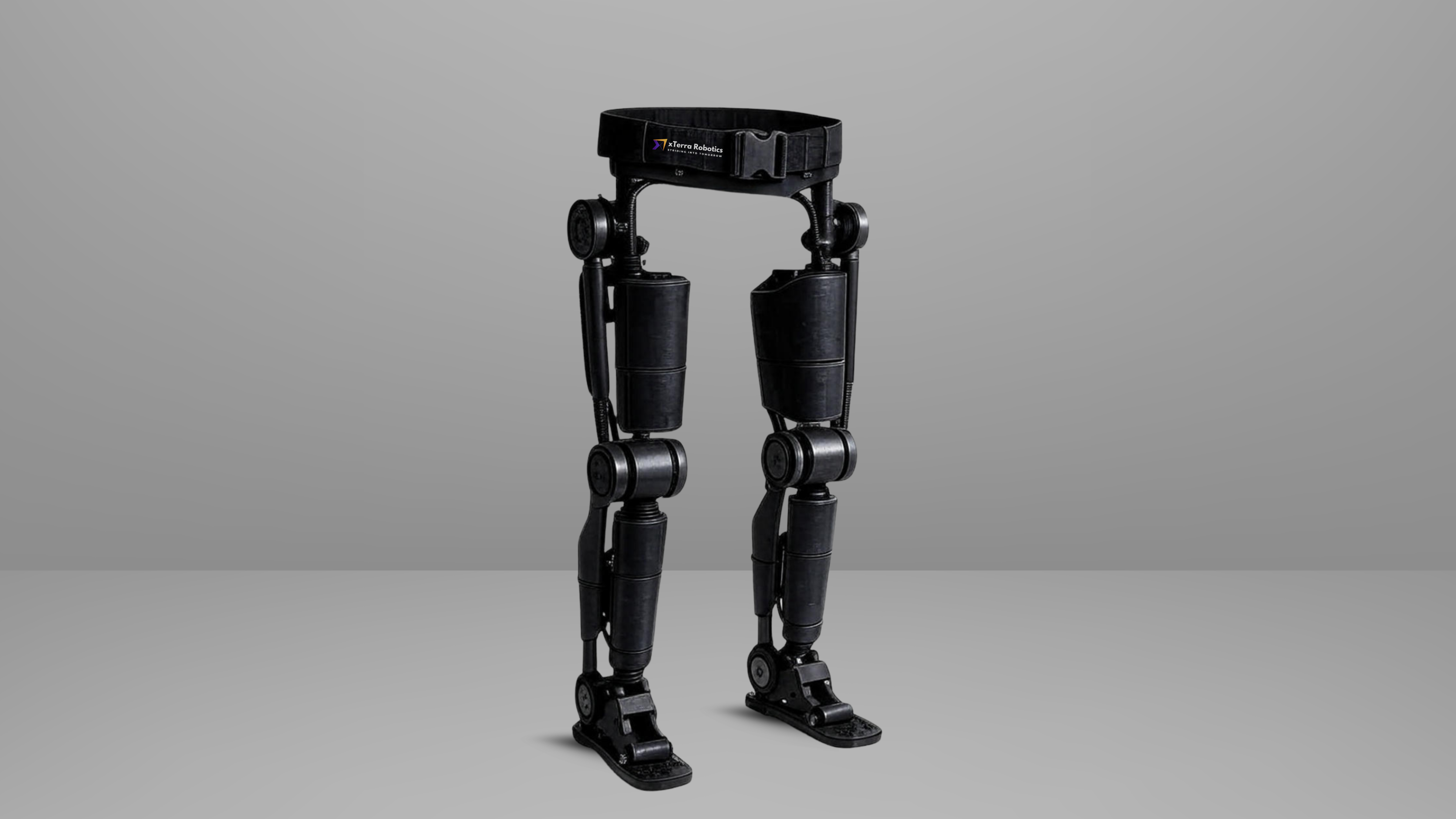

Exoskeletons
Safe, compliant actuation for human augmentation
Humanoid Robots
Versatile actuation for advanced humanoid systems
